Liquid Crystal Film by Gauzy

Liquid Crystal is considered the fourth state of matter, sharing properties of both liquid and crystal phases. Gauzy creates LCG® using PDLC (polymer dispersed liquid crystal) Films which include a unique UV curing formulation consisting of LC + Polymer+ Initiator + Micro-Spacer + UV Stabilizer. This combination enables high control of process parameters and control over crystal morphology in reduced periods of time.

Gauzy offers two different applications for all our Liquid Crystal film technologies: RetroFit and Laminated. All films are characterized by ultra-low haze, superior optical performance, and are available as custom laser cut sheets, or raw material rolls, with a maximum width of 1.8m

Via Gauzy.com

Gauzy LC Film Products

White Liquid Crystal Film

White LC Films provide a clean, natural, and aesthetic switchable glass, allowing privacy when you need it, and an open atmosphere when you want itgauzy-window-white

  • Allows HD images and video when used for projection
  • Ultra-low energy consumption (less than 4W/m2)
  • On/Off or Dimming operational control with FLEX and MultiPlex Controllers
  • Haze: lower than 3%
  • Operating Voltage: 35-70VAC square wave
  • Operating Frequency: 25,32, 50 Hz

Dark Liquid Crystal Film

Dark LC Film supports advanced architectural and design strategies, while being highly relevant for the automotive, transportation, and security sectorsgauzy-window-black

  • Allows HD images and video when used for projection
  • Ultra-low energy consumption (less than 5W/m2)
  • On/Off or Dimming operational control with FLEX and MultiPlex Controllers
  • Haze: lower than 4%
  • Operating Voltage: 35-70VAC square wave
  • Operating Frequency: 25,32, 50 Hz

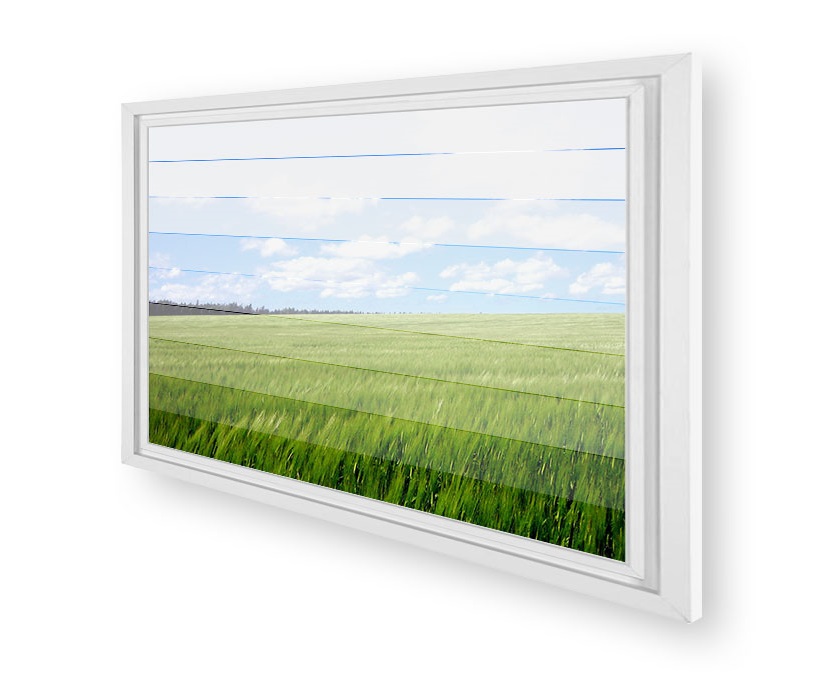

Pixels

Patterned Films with individual control as seen in our LCG® Blinds

  • Custom sizes , shapes, patterns, designs, and thickness of lines
  • Powered by the MultiPlex controller to independently operate patterns
  • Patterns and blinds support advanced architectural and interior designs, upgrading any space
  • LCG® is easy to clean and an antiallergenic alternative to fabrics that collect dust and and germs
  • Control sequence and degree of transparency with dimming features
    White, Dark, or Spectrum films can be used to create patterned LCG®

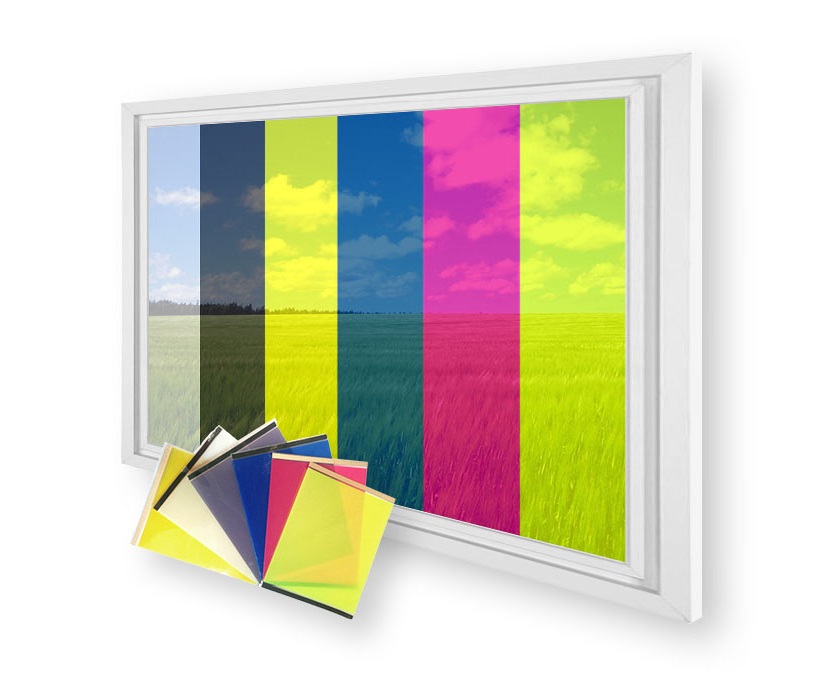

Spectrum Films

Colored PDLC films satisfy advanced architectural and interior designsgauzy-window-color-fan

  • LC films are offered in pink, yellow, orange, blue, and more
  • Color shades can be customized
  • Dimming and on/off capabilities
  • Available in laminated, retrofit, and pixels application
  • Ultra-low haze: an average of 2%
  • Power Consumption: lower than 6W/m2
  • Operating Voltage: 35-70VAC square wave
  • Operating Frequency: 25,32, 50 Hz

How Does Liquid Crystal Film Work?

Gauzy’s patented FLEX and MultiPlex LC Controllers employ unique waveforms, allowing premium optical performance and longevity of films

What happens when it’s on

In full operation, squarewaves allow maximum transparency and minimum haze, while also allowing a range of smooth gradual dimmed transparencies. When electrical supply is provided, the waveform rearranges the LC molecules according to the users demand, letting light pass through.

What happens when it’s off

When the electrical supply is off, the LC molecules align sporadically and scatter the light, causing the glass surface to appear opaque. With Gauzy’s patened Flex or MultiPlex controller, one can gradually control the amount of light that scatters or passes through, giving maximum flexibility over the glass aperture.

Portfolio

In the heart of Downtown Singapore, on Shenton Way, visit OUE’s newest multi-use project featuring the world’s largest LCG® Rear Projection Display in the world. Transparent during the day for an open atmosphere, the atrium facade comes to life in the late afternoon with colorful, dynamic projections on 400 sqm of Gauzy’s switchable glass. This impressive project also features Gauzy partitions for privacy in residential and hospitality suites.

For the full portfolio, visit Gauzy.com/portfolio.
